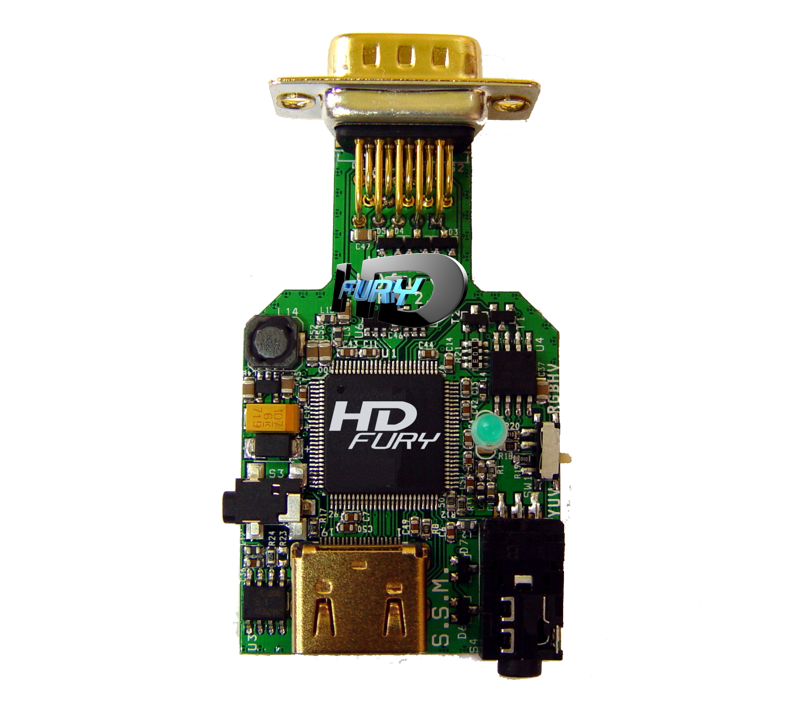

HDMI/DVI-D to VGA/RGBHV and YUV/Component with Optical/Analog Stereo Sound rev.2

$5,000.00

This Virtual Package includes:

PCB Gerber Files
BOM
Source Codes
Compliant FW Supplied
Packaging design files
Enclosure design files

Qty
SKU: REV-TWO-PCB-SC Category:

Product Description

HDMI/DVI-D to VGA/RGBHV and YUV/Component with Optical/Analog Stereo Sound rev.2

Specifications:

INPUT: Digital HDMI 24p Female Port (100% digital)
OUTPUT: Analog RGBHV or Component (YPbPr) via HD-15 D-Sub (VGA style) connector
User Selectable RGBHV / Component (YPbPr) output with a switch
A HDMI -> HDMI cable is used to connect to an HDMI source
RGB 4:4:4 (8 bits) digital input
YCrCb 4:4:4 or 4:2:2 digital input
Compatible with non-HDCP* or HDCP sources
Compatible with any RGB Display
Compatible with any YUV Display
Directly connects to a display’s VGA (RGB) input
Directly connects to a display’s Component (YPbPr) input using included breakout cable
Takes less then 1 minute to install (Plug & Play)
11bit 200MHz data processing
Triple video DAC
RGB-H/V Male Port D-SUB 15 Output video analog signals (0.7Vpp over 75 ohms impedance)
Ultra short Analog links ( HDMI video bandwidth: 25-165MHz
HDMI Data Rate – Bandwidth 1.65 Gbit/sec (Single link)
Supports all HD/SDTV formats from 1080p down to 480i
HDTV ready (480i/480p/576i/576p/720p/1080i/1080p48/50/60 compatible)
DVI 1.0 compliant
HDMI 1.1 and 1.2 ready
HDMI 1.3 interoperable
Reprogrammable Firmware
Screen position adjustable through Firmware and Custom Profile
Accepts third party accessories on output such as the GAMMA-X (Gamma Correction)
Automatic Input Format Detection: Digital YCbCr and RGBHV
Full dynamic range for all input modes to maximize the level of detail
Automatically switches color-spaces for both HDTV (Rec.709) and SDTV (Rec.601)
Precise black levels – no black crush in any standard mode
Stereo High-Quality Analog Audio Output
Stereo High-Quality Digital/Optical Audio Output
HD-DVD and Blu-Ray Disc player compatible
PS3, PS4, Xbox360 and Xbox One compatible
Satellite and Cable set-top box compatible for HDTV
HDMI video graphics card compatible
Energy management : DVI and VESA DPMS compatible
Ultra low power consumption in Standby (3,5mA)
Maximum power : 0.4A under 5V (at 1080p/60)
On-board DC/DC converter (5V) with extra-low EMI signature
Power +5V from DVI/HDMI
Blue LED to display active digital link and power status
Small size : 75x56mm cabinet
100% ROHS compliant (Restriction of Hazardous Substances Directive)
Installation: The module may be DIRECTLY screwed to the back of the display into the VGA SUB-D plug.
Shortest RGB and Component (YPbPr) analog video link as possible.
No end-user access to decrypted analog video.
Full aluminium case with thermal dissipation
Optional +5v input and power supply
EDID detective feature: EDID eprom can be reprogrammed using a computer through the graphics card (feature reserved for professionals)
Internal EDID EEPROM with complete CEA861 extension block

*No end-user access to decrypted analog video.
