HDMI/DVI-D to VGA/RGBHV rev.1

$1,000.00

This Virtual Package includes:

PCB Gerber Files
BOM
Source Codes
Compliant FW Supplied
Packaging design files
Enclosure design files

Qty
SKU: REV-ONE-PCB-SC Category:

Product Description

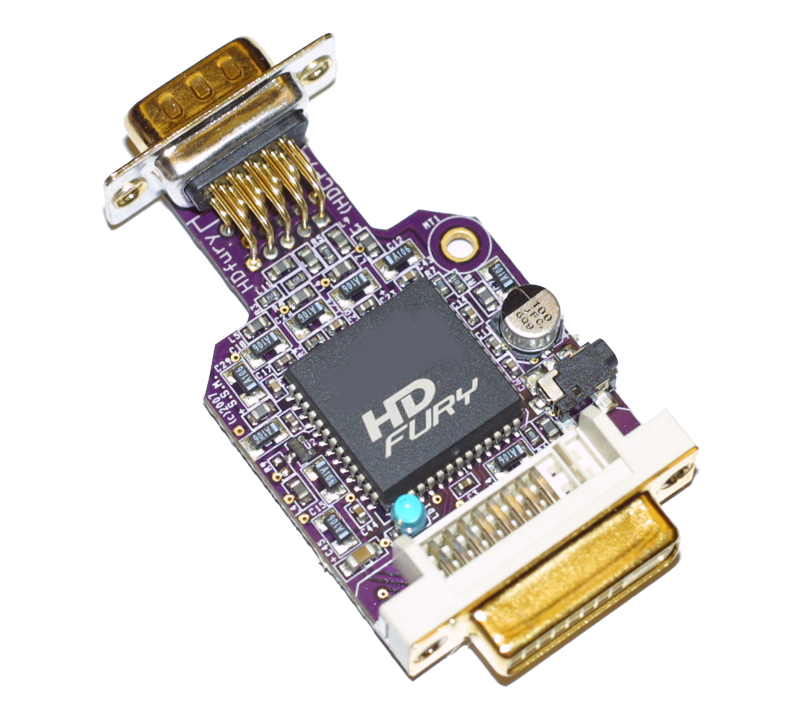

HDMI/DVI-D to VGA/RGBHV rev.1

Specifications:

DVI-D 24p Female Port Input (100% digital).
A HDMI -> DVI-D cable can be use to connect to an HDMI source.
RGB 4:4:4 (8 bits) digital input (every HDMI source MUST be RGB 4:4:4 compatible).
Compatible with non-HDCP* or HDCP sources.
Compatible with any RGB Display
Directly connect to VGA input.
Easy to install within a minute. (Plug&Play)
10 bits 175MHz triple video DAC – Inter-DAC : 2%
RGB-H/V Male Port D-SUB 15 Output video analog signals (0,7Vpp over 75 ohms impedance)
Ultra short Analog links (<1 cm) on the HD fury RGB 1080p for optimal quality.
DVI video bandwidth in VGA/RVB outputs: 25-165MHz
DVI Data Rate – Bandwidth 1.65 Gbps (Single link)
Maximum resolutions: 1920×1080 or UWXGA (1920×1200) at 60Hz with custom porch settings or SXGA (1280×1024) at 85Hz Computer compatible (PC, Mac)
HDTV ready (480p/576p/720p/1080i/1080p48/50/60 compatible)
DVI1.0 compliant / HDMI interoperable and HDCP ready
HD-DVD and Blue Ray Disc players compatible
PS3, PS4, X360, X1 and Elite compatible
SAT and CABLE setbox for HDTV channels compatible
Energy management : DVI et VESA DPMS compatible.
Ultra low power consumption in Standby (3,5mA)
Maximum power : 0.4A under 5V (at 165MHz pixel clock)
On-board DC/DC converter (5V) with extra-low EMI signature
Power +5V from DVI/HDMI or external power supply
Blue LED to display active digital link.
Safe cost solution – Single IC solution + external eeprom*
Small size : 75x56mm black cabinet
Installation: the RGB 1080p module is DIRECTLY screwed to the back of the display (where VGA SUB-D plugs stand).
Shortest RGB analog video link as possible
+5v input
EDID detective feature: EDID eprom can be reprogrammed by your computer through it’s Graphic Card! (This feature is reserved to professionals)

*No end-user access to decrypted analog video.
