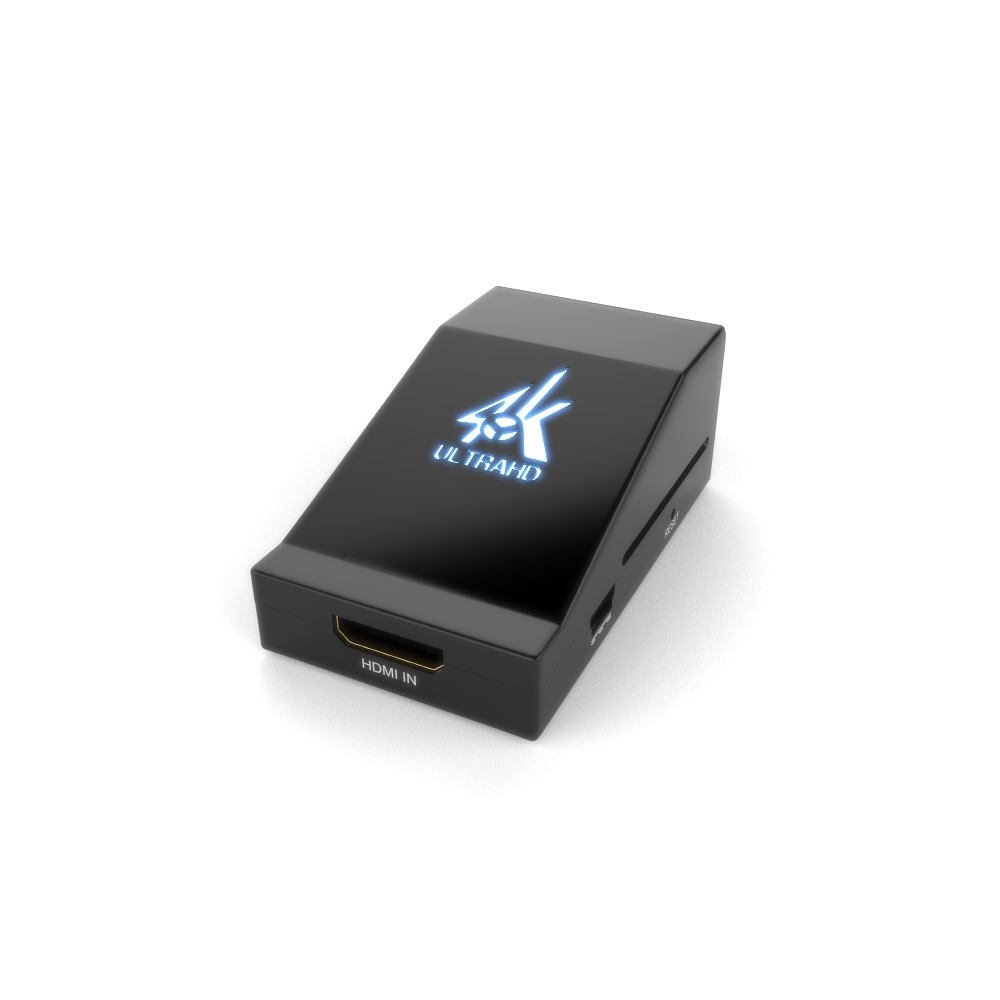

Splitter 4K UHD

$79.00

Discontinued, not available anymore.

This Kit includes :

Splitter 4K UHD
USB power/update cable

Clear

Product Description

Splitter 4K UHD Key Features

Our Splitter 4K UHD handles all video formats down to SD (480p) and all the way up to UHD (2160p).
Up to 4K30 4:4:4 or 4K60 4:2:0.
AutoMix EDID feature will create a custom EDID by mixing both sink EDID connected to the splitter output ports.
Custom and manual EDID utility available from the download section.
Featuring a smart reset switch so you will never have to unplug and replug HDMI cable again, just press the reset button and HPD events is reinitialized.
Just like any recent HDfury hardware, it comes with USB upgradable firmware that allow you to unleash furious features.
Since FW1.13: EZ and Expert modes are now available.


Splitter 4K UHD is a 2-Port DVI/HDMI splitter with integrated HDCP decryption/encryption engines and is compliant with HDMI Rev 1.4 and HDCP Rev 1.3 specifications.
Splitter 4K UHD receives DVI/HDMI inputs, process HDCP decryption and encryption and transmits the data to 2 DVI/HDMI ports.

Technical Specs

4K Splitter technical specs

    DVI Specification 1.0 Compliant
    HDMI Specification 1.4a Compliant
    Integrated HDCP decryption/encryption engines which are compliant with HDCP Rev 1.3 specification
    Integrated automatic EDID processing
    Wide Frequency Range: 25MHz – 340MHz (beyond 4K spec)
    Supports 12-bit Deep Full HD, Full 3D and 4K2K video.
    Supports Standard Audio, DSD Audio and HD (HBR) Audio
    Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports
    Supports conversion of HDMI signaling to DVI signaling
    Supports HDCP Repeater
    Scalable to make more than 4 output ports
    Supports 2D and 3D video signals in NTSC 480i/p, PAL 576i/p, HDTV 720p/1080i/1080p/1440p/2160p
    Size : 65 * 49 * 39 (mm)

FAQ

Got questions ? We have answers !

How does the Splitter 4K UHD combines EDID from 2 sink devices?

The combinator checks video and audio capabilities including DVI or HDMI capability and distributes information so that each display will both show video and audio. So it has to take into account that it cannot send 7.1 to a stereo receiver or 1080p to a 480p display. So it configures EDID based on the best shared capabilities.
However, if one the displays is DVI and the other one is HDMI then it will still send audio to the HDMI capable display while keeping the other output as pure DVI. So you will still hear audio.
Splitter 4K UHD also have a windows EDID utility to manually upload, read ,write, save or load any EDID file.

Download

Silabs Driver 4.0.0 for XP/VISTA/WIN7/WIN8/WIN10 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 4.0.0 – ZIP – 9.18 Mo 4.0.0 XP / VISTA / WIN7 / WIN8 / WIN10 WIN10
Silabs Driver 3.9.2 for XP/VISTA/WIN7/WIN8/WIN10 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 3.9.2 – ZIP – 1.65 Mo 3.9.2 XP / VISTA / WIN7 / WIN8 / WIN10 XP / VISTA / WIN7 / WIN8 / WIN10

Select the right drivers based on your Windows version and the USB port version you plan to use. Drivers only need to be installed once for all our devices.
Please note that if you connect your HDfury device to a WIN10 computer prior to any driver installation, WIN10 will install driver from the internet automatically, in such case you do not need to install any drivers manually and you can just proceed with using utility and updaters software from driver 3.9.2 directory. Each below downloads, once downloaded and extracted will provide utility and updaters for either 3.9.2 or 4.0.0 driver.

4K UHD Splitter EDID utility (Manual Force mode) Version Format Size Date
[20-MAY-17] 4K UHD Splitter EDID Utility – ZIP – 16.6 Mo 1.0 ZIP 16.6 Mo 20-MAY-17
4K UHD Splitter Firmware Version Format Size Date
[20-MAY-17] 4K UHD Splitter FW1.13 – ZIP – 10.5 Mo (latest) 1.13 ZIP 10.5 Mo 20-MAY-17
[20-MAY-17] 4K UHD Splitter FW1.1 – ZIP – 10.5 Mo (original) 1.1 ZIP 10.5 Mo 20-MAY-17
